Color Range Mask

This article describes an improvement to the usual methods of adjusting contrast with Photoshop Curves. To avoid tedious selection of individual objects, we can add a Color Range Mask adjustment to a Curves correction.

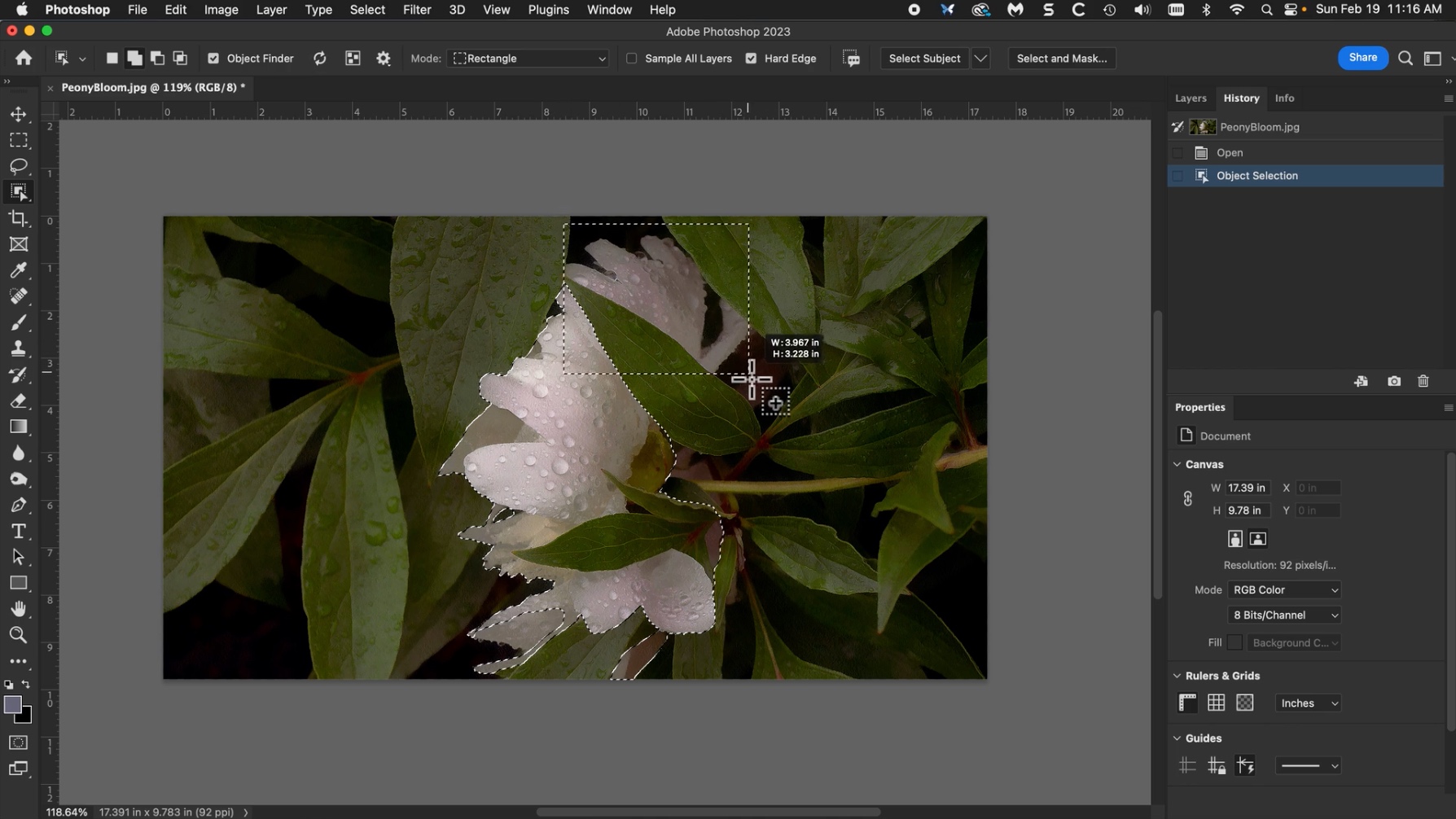

To darken only the flower petals with usual methods, we have to select them first by using selection tools which can be tedious and error-prone. Instead, let's select them by their brightness range.


Original grayscale image

Add a Curves adjustment layer. Do not adjust the curves yet.
And a luminosity mask to the Curves layer.
Click on the mask and choose Select > Color Range...

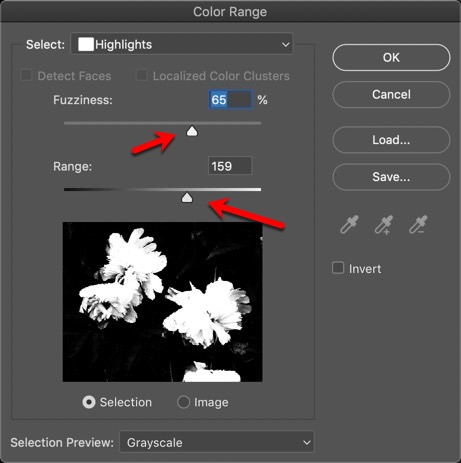

Specify a high brightness value so that only the flower petals elements are selected.
Adjust the Fuzziness slider to avoid any abrupt transitions.


We have made a mask which selects only the flower petals. The leaves have been masked.

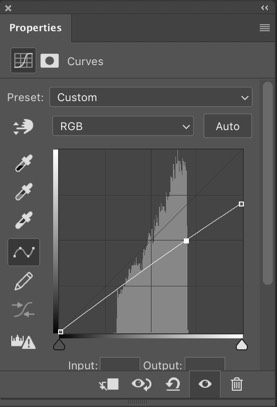

Edit the Curves adjustment layer to darken the selected values.

Here is the adjusted image:


After Curves adjustment to the selected range
The leaves are unaffected while the petals have deeper range of tones.


Inverted Color Range Mask

Lets darken the tonal curve of the image, but exclude the brightest values on the clock face. To avoid the time-consuming process of selecting them one at a time, let's identify them by their brightness range.


Original grayscale image

Add a Curves adjustment layer. Do not adjust the curves yet.
And a luminosity mask to the Curves layer.
Click on the mask and choose Select > Color Range...

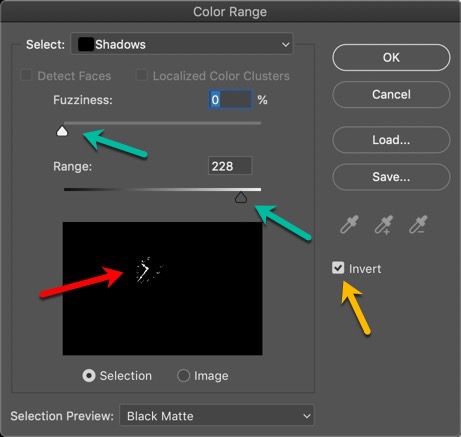

Check the Invert option.
Specify a high brightness value so that only the brightest elements are masked.
Adjust the Fuzziness slider to avoid any abrupt transitions.


We have made an inverted mask which blocks the clock hands.
Our Curves adjustment will affect everything but the clock hands

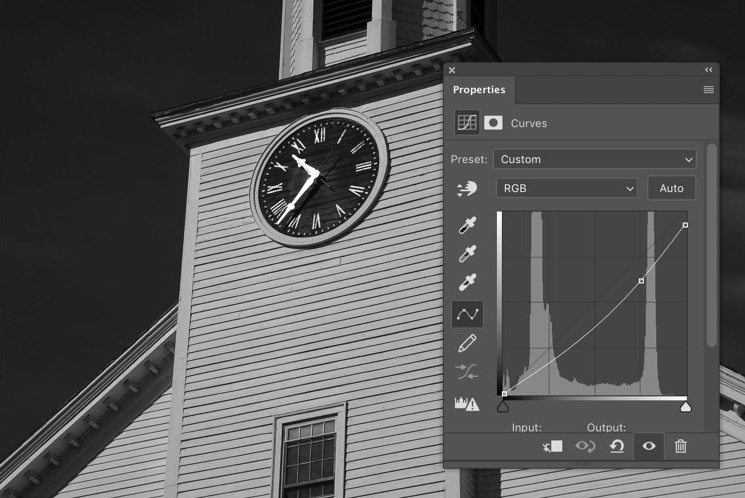

Edit the Curves adjustment layer to darken the selected values.


Here is the adjusted image:


After masked Curves adjustment.
All of the image has been darkened, except the clock hands.

Instructional Videos

Click here to watch two short videos on the Color Range tool
